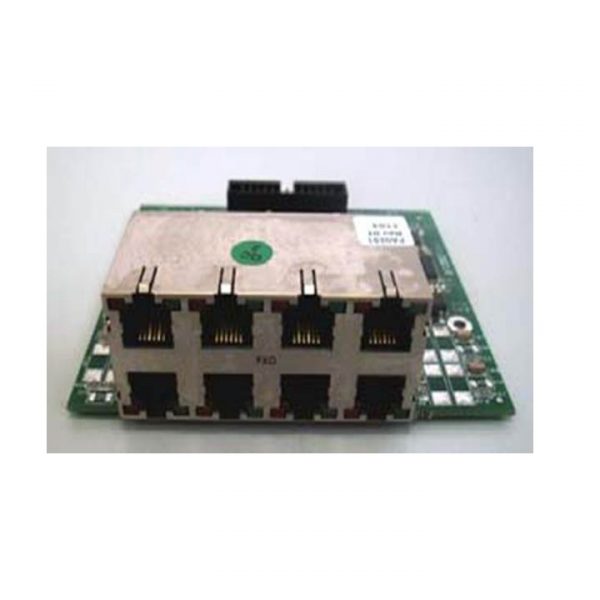

D-Link DVX-8020 8-port FXO module
- 8 port FXO module for DVX-8000/DVX-9000 (including one time license activation fees)
- This private exchange 8-port FXO module supports the D-link SPI (Serial Peripheral Interface) internal DVX-8010 bus and is designed to operate withPSTN POTS lines.
- It supports 100% electronic operation (no relays) based on solid-state DAAs (Data Access Arrangements).
- The module is electrically isolated, with a capacitive coupled line circuit. Built-in surge protection tested per FCC part 68.
- Voltages and currents (supplied by the E-main control module): Logic 3.3 VDC @ up to 0.2 Amp.
- The module includes eight RJ11 ports for line connection. Each port has two LEDs (Light Emitting Diodes).
- The green LED indicates port status:
- Solid Green = off-hook, engaged line
- Blinking green = ringing
- The red LEDs are used for special indications (on, synchronized, active) when the module is installed in the first (left-most) position in an D-link PBX chassis.
