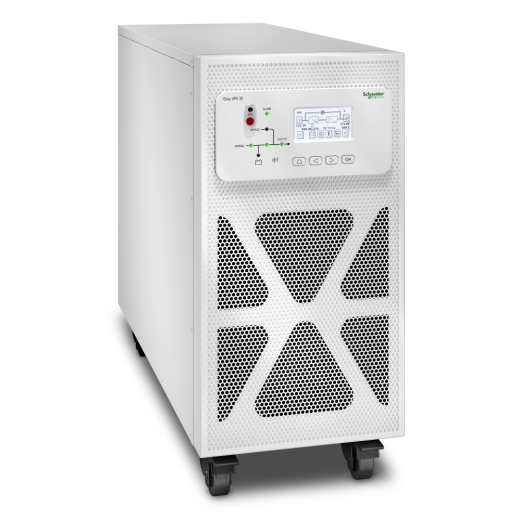

APC 10KVA | EASY UPS 3 Phase (E3SUPS10KHB2)
APC 10KVA | EASY UPS 3 Phase (E3SUPS10KHB2)
- Nominal Input Voltage : 400V 3PH
- Input Frequency : 45 – 65Hz
- Maximum Input Current : 18.0A
- Input P.F : 0.99
- Output Power Capacity : 10.0 kVA
- Nominal Output Voltage : 400V 3PH
- Output Voltage THD : < 3% linear load
- Topology : Double Conversion Online
- Battery type : VRLA
- Nominal Battery Voltage : 240V
- Runtime : 40 minutes
- Included Battery Modules : 2
- Interface Port(s) : E3S_Parallel; E3S_TempSensor
- Protection Class : IP 20
APC 10KVA | EASY UPS 3 Phase (E3SUPS10KHB2)
Output
Max Configurable Power (Watts)
Output Voltage Distortion
Output Frequency (sync to mains)
Other Output Voltages
Topology
Output Voltage THD
Output Voltage Tolerance
Input
Input frequency
Input voltage range for main operations
Input Total Harmonic Distortion
Other Input Voltages
Input Power Factor at Full Load
Batteries & Runtime
Battery type
Included Battery Modules
Nominal Battery Voltage
Battery Slots Empty
Replacement battery cartridge note
Maximum Available Short Circuit Current
Efficiency
Communications & Management
Interface Port(s)
Physical
Maximum Height
Maximum Width
Maximum Depth
Net Weight
Shipping weight
Shipping Height
Shipping Width
Shipping Depth
Color
Environmental
Operating Temperature
Operating Relative Humidity
Operating Elevation
Storage Temperature
Storage Relative Humidity
Storage Elevation
Audible noise at 1 meter from surface of unit
Online thermal dissipation
Protection Class
Conformance
Approvals
Standard warranty
Sustainable Offer Status
RoHS
