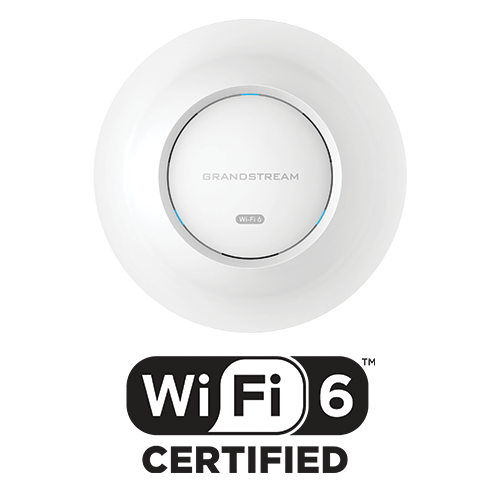

Grandstream GWN7660 Wi-Fi Wireless Access Points

Grandstream GWN7660 Wi-Fi Wireless Access Points

The Grandstream GWN7660 is a powerful indoor Wi‑Fi 6 (802.11ax) access point designed for medium to high-density environments including office buildings, schools, hospitals, and retail spaces. With support for advanced wireless technologies and high concurrent client capacity, it delivers superior speed, efficiency, and security for modern enterprise networks

Grandstream GWN7660 Wi-Fi Wireless Access Points Specifications

• Wi‑Fi Standard: Dual-band Wi‑Fi 6 (802.11ax)

• MIMO Configuration: 2×2:2 MU‑MIMO on both 2.4 GHz and 5 GHz

• Wireless Speed: Up to 1.77 Gbps aggregate throughput

• Concurrent Clients: Supports 256+ simultaneous usershttps://www.city.co.ke

• Coverage Range: Up to 175 meters indoors

• Antenna Design: Internal antennas (~3.5 dBi @ 2.4 GHz, ~4.5 dBi @ 5 GHz)

• Transmit Power: Up to 23 dBm (2.4 GHz), 26 dBm (5 GHz) – region dependenthttps://www.city.co.ke

• SSID Support: Up to 16 SSIDs (8 per radio)

• Ethernet Ports: 1 × Gigabit Ethernet port with PoE/PoE+

• Power Consumption: Max ~11 W

• Power Input: IEEE 802.3af/at PoE

• Security: WPA3, WPA2 Enterprise, secure boot, signed firmware, unique device credentials

• Advanced Features: OFDMA, BSS Coloring, Target Wake Time (TWT), 1024-QAM

• QoS & Traffic Management: 802.11e/WMM, VLAN tagging, multicast-to-unicast conversion

• IPv6 & Network Protocols: Full IPv4/IPv6 support, 802.1x authentication

• Management Options: Embedded controller (up to 50 APs), GWN.Cloud, GWN Manager

• Mounting: Wall or ceiling mount

• Dimensions: ~205 × 205 × 45 mm

• Operating Temperature: 0°C to 50°C

• Humidity: 5–95% non-condensing

• Certifications: FCC, CE, IC, UKCA, RCM

• Warranty: Typically 3 years manufacturer warranty
