Grandstream GWN7802P Managed Network Switch

Grandstream GWN7802P Managed Network Switch

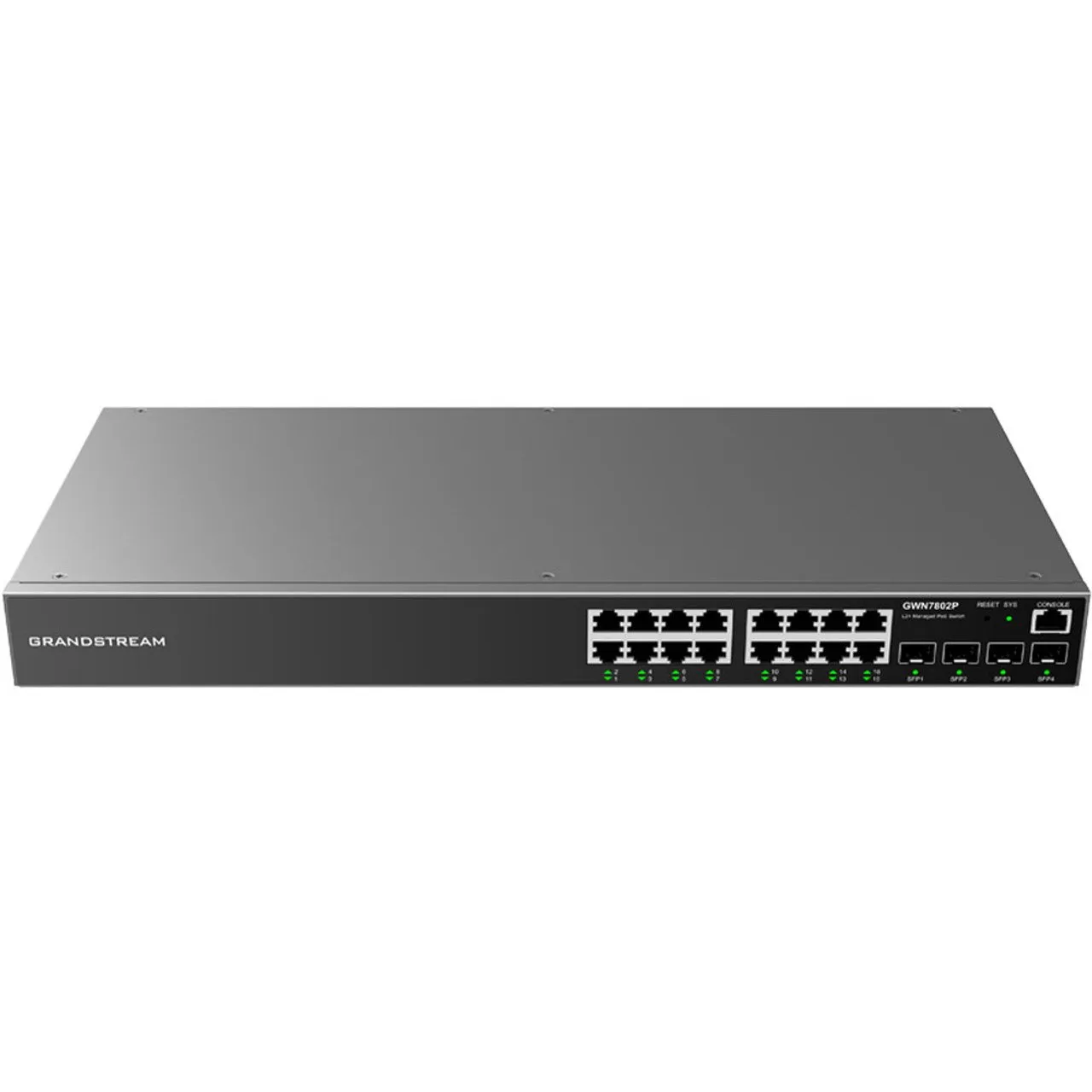

The Grandstream GWN7802P is a Layer 2+ managed Gigabit PoE+ switch featuring 16 PoE+ ports, 4 SFP uplinks, dynamic power control, and full ACL/security support—ideal for SMBs and branch office environments requiring secure, centrally managed networking.

Grandstream GWN7802P Managed Network Switch Specifications

• Ethernet Ports: 16 × 10/100/1000 Mbps RJ45 (all PoE+ capable)

• Uplink Ports: 4 × Gigabit SFP ports

• PoE Support: IEEE 802.3af/at PoE+ on all 16 portshttps://www.city.co.ke

• PoE Budget: Up to 240W (max 30W per port, with 270W internal PSU)

• Switching Capacity: 40 Gbps non-blocking throughput

• Forwarding Rate: Up to 29.76 Mpps

• MAC Address Table: 8K entries

• VLAN Support: 4K VLANs, port-based, 802.1Q, voice VLAN

• ACL Support: Up to 1.5K IPv4/IPv6 access control entrieshttps://www.city.co.ke

• QoS: Port-based priority, WRR, SP, WFQ scheduling, rate limiting

• Multicast Features: IGMP/MLD Snooping, MVR

• Security Features: IP/MAC/VLAN/Port binding, ARP Inspection, DHCP Snooping, DoS Protection

• Storm Control: Broadcast, multicast, and unknown unicast limiting

• Loop Protection: BPDU Guard, Root Guard

• Link Aggregation: Up to 8 LAG groups

• Management Interfaces: Web UI, CLI, SNMP, SSH, Telnet, GWN.Cloud, GWN Manager

• DHCP Features: Integrated DHCP server & relay, Option 82

• Diagnostics: Port mirroring, cable test, loopback, syslog, RMON

• Enclosure & Mounting: Metal chassis, rack/desktop/wall-mountable

• Cooling: Active fan cooling

• Dimensions: 440 × 200 × 44 mm

• Weight: Approx. 3 kg

• Operating Temperature: 0°C to 45°C

• Humidity Range: 10–90% RH (non-condensing)

• Certifications: FCC, CE, IC, RCM, UKCA

• Warranty: Typically 3 years
