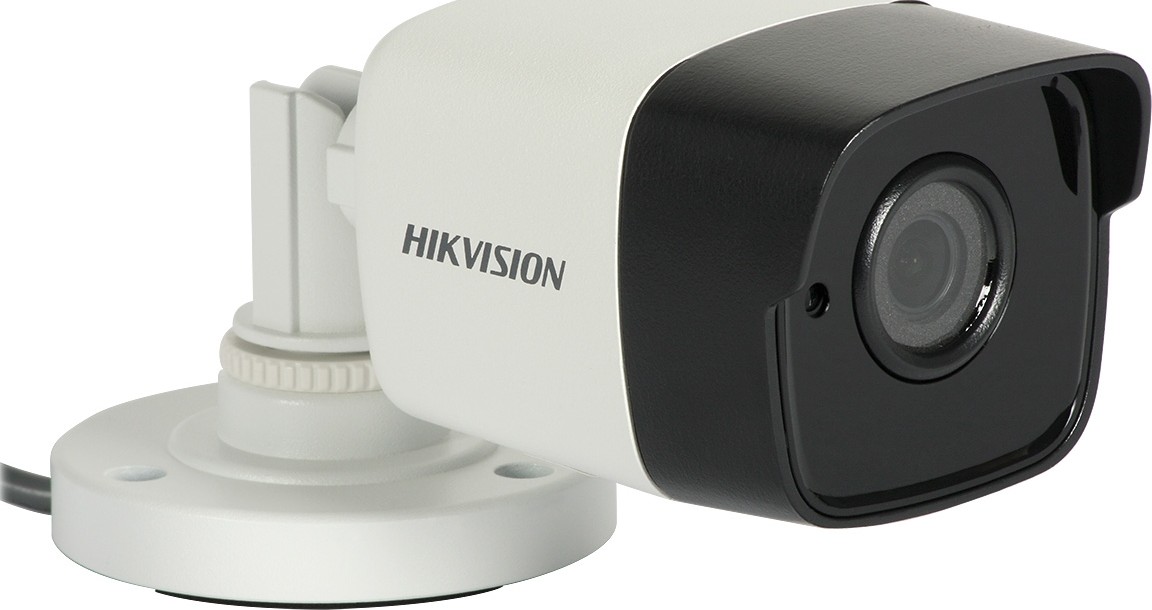

Hikvision – 5 MP Fixed Mini Bullet Camera

A compact mini bullet analog HD‑TVI camera delivering 5 MP resolution (2560 × 1944) with Smart IR night vision, built‑in microphone audio-over-coaxial, and switchable multi-format output. Ideal for outdoor or sheltered deployment with high-detail surveillance needs.

Key Specifications

• Image Sensor & Resolution: 5 MP CMOS, captures up to 2560 × 1944 resolution https://www.city.co.ke

• Minimum Illumination: ~0.01 Lux @ F2.0 (AGC On); 0 Lux with IR active

• Lens Options: Fixed M12 lenses in 2.8 mm (≈110° diagonal HFOV), 3.6 mm (~106°), or 6 mm (~72°)

• IR Night Vision: Smart IR LEDs up to ~30 m for sharp low-light imaging https://www.city.co.ke

• https://www.city.co.keFrame Rates (TVI):

  • 5 MP @ 20 fps

  • 4 MP @ 25/30 fps

  • 1080p @ 25/30 fps
    (Also supports lower frame rates on CVI/AHD/CVBS)

• Video Output Formats: TVI / AHD / CVI / CVBS switchable via single BNC port https://www.city.co.ke

• Audio: Built-in microphone audio transmitted over coax cable (TVI)

• Image Enhancements: Digital WDR (DWDR), BLC, Smart IR, brightness/sharpness controls; 2D or 3D DNR depending on variant

• Mount Adjustability: Pan 0–360°, Tilt 0–90°, Rotate 0–360° for installation flexibility

• Power & Consumption: 12 V DC ±25%, maximum approx. 3.7 W

• Build & Environmental Specs:

  • Material: Metal (ITFS) or plastic (ITPFS variant)

  • Dimensions: approx. 58 mm × 61 mm × 158.6 mm

  • Weight: ~160 g (plastic) to ~292–337 g (metal variant)

  • Operating Range: −40 °C to 60 °C; humidity ≤ 90% (non‑condensing)

  • Protection Rating: IP67 (dust and water protection)
