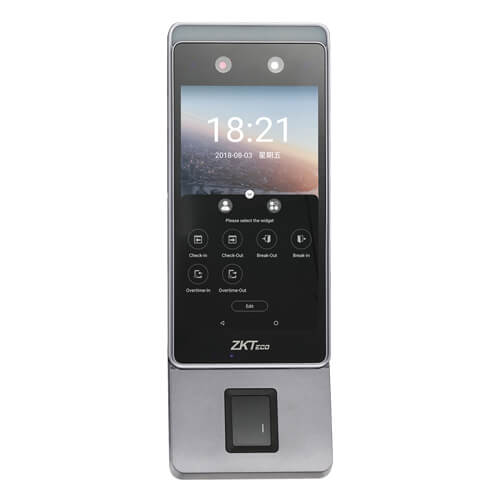

ZK Teco Horus E1-FP Time-attendance with (Face+Finger+Card)

The Horus E1‑FP is a sleek, Android 8.1-based biometric terminal designed for wireless, hands‑free, multi-modal authentication. It combines visible‑light facial recognition, fingerprint scanning, and RFID card support (EM/MIFARE). With a compact body akin to an iPhone XS Max, it accommodates both indoor and outdoor installations, offering powerful anti-spoofing and long-range recognition up to 3 m—ideal for modern offices, mobile sites, and one-door access control scenarios

ZK Teco Horus E1-FP Time-attendance with (Face+Finger+Card) Specifications

• Operating System & CPU
  Runs on Android 8.1 with a quad-core 1.5 GHz CPU

• Memory
  2 GB RAM and 16 GB ROM for reliable performance and storage .

• Display & Camera
  Features a 5″ IPS touchscreen (720×1280) and a dual-lens 2 MP WDR camera for low-light face detection

• Biometric Modes & Capacities

  • Facial templates: 6,000 standard; expandable to 10,000

  • Fingerprint templates: 6,000 expandable to 10,000

  • Card templates: Supports up to 10,000 EM/MIFARE cards

• Log Capacity
  Stores up to 100,000 attendance recordsCommunication Interfaces

  • TCP/IP Ethernet (10/100 Mbps)

  • Wi‑Fi (2.4/5 GHz)

  • Bluetooth 4.0

  • 4G LTE/GSM coverage across global bands

  • GPS/A‑GPS for location tagging

• Audio
  90 dB speaker and 1 m-range microphone for prompts and alerts

• Power & Environment
  Powered via 12 V/2 A DC, operating between –10 °C to 50 °C and 20–80 % RH

• Dimensions & Certifications
  Measures 205 × 74 × 17.7 mm and certified CE/FCC/RoHS
