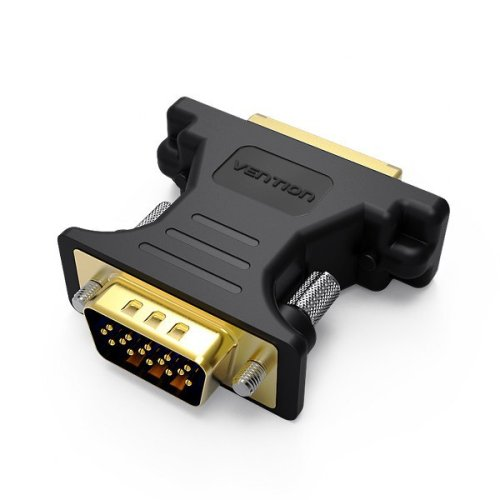

VENTION DVI FEMALE TO VGA MALE ADAPTER

VENTION DVI FEMALE TO VGA MALE ADAPTER

Display connectivity configurations sometimes require conversion from DVI cable outputs to VGA monitor inputs for legacy system integration. The VENTION DVI Female to VGA Male Adapter provides essential signal format conversion between digital and analog video standards. This adapter enables connection of DVI cables to VGA displays while maintaining acceptable image quality for standard resolution applications.

Additionally, the adapter incorporates active digital-to-analog conversion circuitry that processes DVI-I signals containing analog components. The conversion maintains color accuracy and timing specifications required for stable VGA display operation. Subsequently, users can connect modern graphics cards equipped with DVI outputs to older VGA monitors and projectors without requiring complete display system replacement or expensive upgrade procedures.

Furthermore, the compact design integrates seamlessly into existing cable configurations without creating unwieldy connection points or clearance issues. The adapter features robust connector housings that provide secure mechanical attachment while protecting internal conversion electronics from environmental stress. Hence, educational institutions, industrial facilities, and cost-conscious organizations benefit from flexible display connectivity that extends the operational life of functional VGA equipment.

Interface Specifications

• Input Connection: DVI-I female receptacle accepting analog-capable DVI signals
• Output Connection: VGA (HD-15) male connector with standard pin configuration
• Signal Processing: Active digital-to-analog conversion with integrated DAC circuitry
• Resolution Support: Compatible with standard VGA resolutions up to 1920×1080
• Power Requirements: Passive operation utilizing DVI analog power pins

Conversion Features

• Signal Compatibility: Requires DVI-I source with analog signal capability
• Color Reproduction: Maintains RGB color space accuracy through conversion process
• Timing Preservation: Supports standard VGA timing specifications and refresh rates
• Connector Security: Thumbscrew retention on VGA output ensures stable connection
• Impedance Matching: Proper electrical characteristics for VGA signal integrity

Application Scenarios

• Legacy Display Support: Connects DVI sources to existing VGA monitors and projectors
• Educational Technology: Enables classroom computer connection to older display equipment
• Industrial Systems: Facilitates equipment integration with established VGA-based displays
• Cost-Effective Solutions: Avoids expensive display replacement in budget-conscious environments
• Temporary Installations: Provides flexible connectivity for events and portable setups
