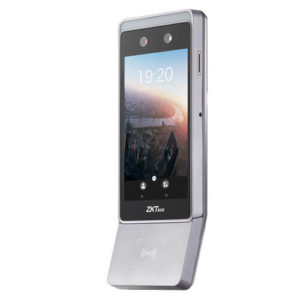

ZK Teco Horus E1 Time-attendance with (Face+Card)Supports: Wi-Fi,Bluetooth, 4G, GPS , Battery

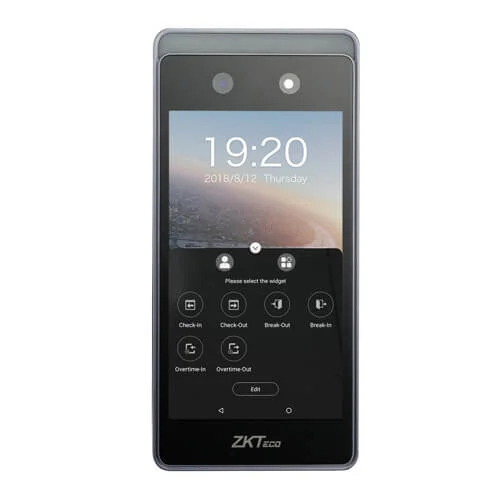

The Horus E1 is a compact, Android-based biometric terminal featuring Visible-Light Facial Recognition with impressive capabilities—recognition up to 3 meters, ±30° pose tolerance, and strong anti-spoof detection. Housed in a sleek form factor (similar to an iPhone XS Max), it supports facial, optional fingerprint, and RFID card authentication. It’s designed for flexible deployment with Wi‑Fi, Bluetooth, 4G, GPS/A-GPS, and USB support. Ideal for use in areas without reliable power, it includes a 4,300 mAh battery—perfect for field operations, remote worksites, or mobile setups

ZK Teco Horus E1 Time-attendance with (Face+Card)Supports: Wi-Fi,Bluetooth, 4G, GPS , Battery Specifications

Core Specs

• OS & CPU: Android 8.1 running on a 1.5 GHz Quad-core CPU

• Memory: 2 GB RAM, 16 GB ROM

• Display: 5″ IPS touchscreen, 720×1280 resolution Face Templates: 6,000 (expandable to 10,000)

• Fingerprint Templates: Not available on base model (E1), available on E1-FP up to 6k/10k

• Card Templates: Available on RFID variants, storing up to 10,000Transaction Logs: Up to 100,000 records Camera & Anti-Spoofing

• Dual 2 MP WDR camera with adjustable LED Visible-light facial recognition with Deep Learning algorithms: ±30° angle tolerance, effective anti-spoofing against photos, videos, and masks

• Wi‑Fi: Dual-band 2.4/5 GHz, 802.11a/b/g/n

• Bluetooth: v4.0

• 4G LTE: Supports multiple global bands including FDD and TDD

• GPS/A‑GPS: For location-tagged attendance data

• USB: USB 2.0 (for data & firmware transfers)

Audio & Alerts

• Speaker: Up to 90 dB output at 10 cm

• Microphone: Picks up clear audio within 1 cm for voice prompts or recording z

Battery & Power

• Battery: 4,300 mAh, output 12 V ±0.5 A (rated at 7.4 V)

• External Power: 12 V, 2 A DC
