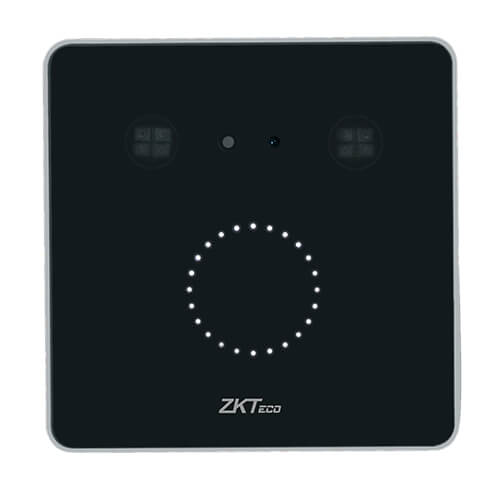

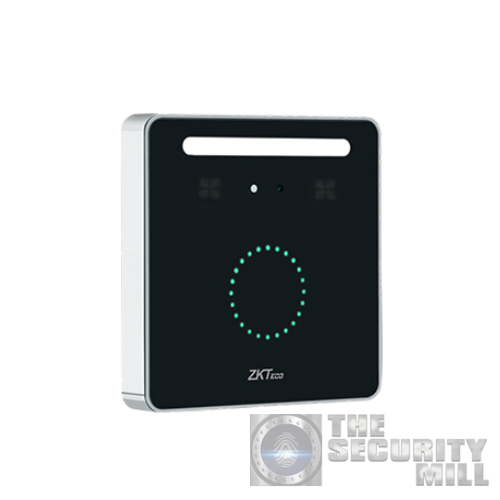

ZK Teco KF1100 Visible Light Facial Recognition & RFID Reader

The KF1100 is a sleek, wall‑mounted access control reader that combines visible‑light facial authentication with RFID card support. Built for both indoor and outdoor use, it easily integrates with ZKTeco’s InBio Pro Plus controllers—or operates standalone when paired with a lock-extension panel like the DM10. Its slim aluminum design works with standard gang boxes.

ZK Teco KF1100 Visible Light Facial Recognition & RFID Reader Specifications

• Biometrics: Visible-light face recognition; no fingerprint function.

• Face Template Capacity: 1,500 templates stored locally, expandable to 3,000 in Face Reader mode.

• User/Card Capacity: Supports up to 30,000 users and 30,000 RFID cards.

• Log Storage: Up to 100,000 event records.

• Recognition Performance:

  • Speed: < 0.3 seconds

  • Distance: 30–50 cm

  • Accuracy: FAR ≤ 0.001%, FRR ≤ 1%

• Hardware:

  • CPU: 1.2 GHz dual-core

  • Memory: 256 MB RAM, 512 MB ROM

  • Camera: Dual 2 MP visible-light cameras

• Connectivity: TCP/IP, Wiegand output, RS‑485 (optional), and today’s IP65-rated models can include Wi‑Fi.

• Operating System: Embedded Linux.

• Power: ≤ 12 V, 500 mA.

• Environmental Tolerance: –10 °C to +50 °C, 10‑90% RH.

• Mounting Options:

  • KF1100: fits Asian gang‑box (91 × 91 × 13.8 mm)

  • KF1200: fits Single‑gang box (121 × 80 × 13.8 mm)

• Platform Compatibility: Optimized for InBio controllers; supports ZKBio Access IVS and ZKBio CVSecurity.
