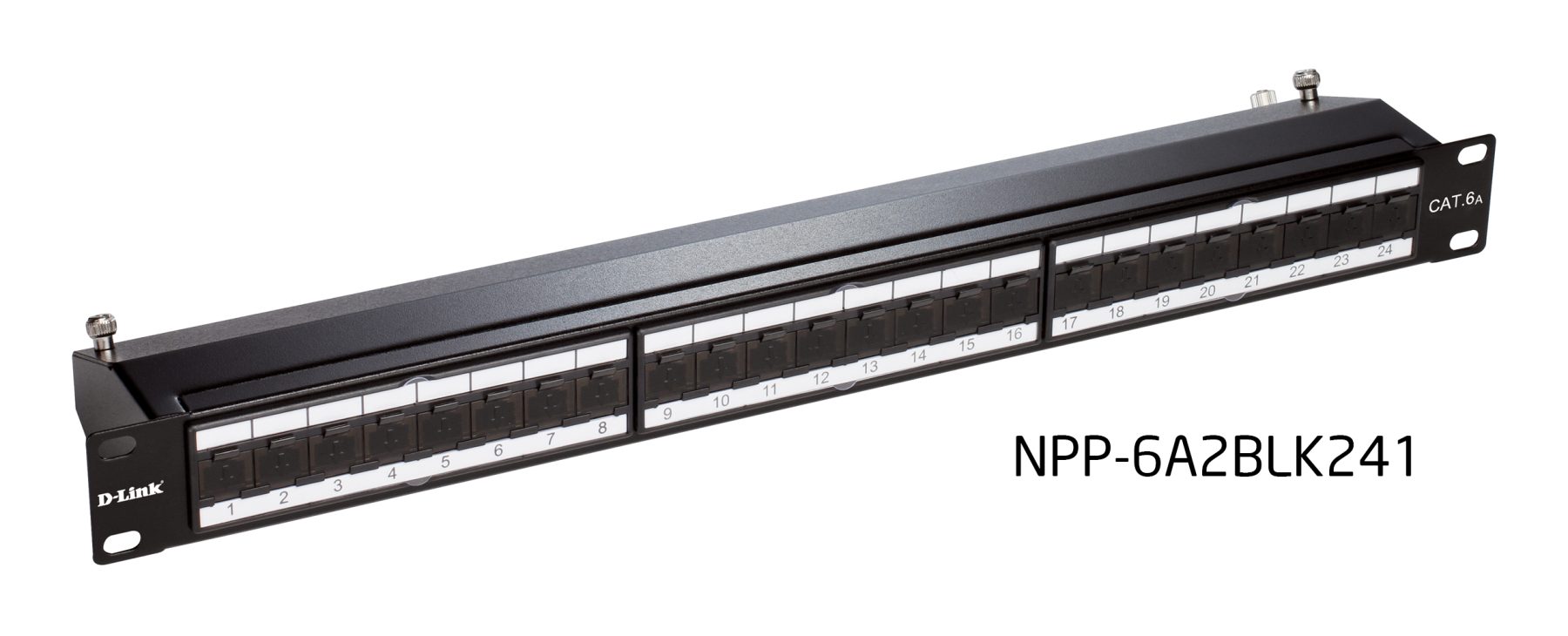

DLINK PATCH PANEL CAT6A STP 24 PORT
Original price was: KSh15,000.00.KSh11,600.00Current price is: KSh11,600.00.
DLINK PATCH PANEL CAT6A STP 24 PORT
Available in 24 (1U) and 48 (2U) ports
Hand screw, easy to open cover
Eight port RJ45 modules applied
Jack shutter to keep dust away
Friendly installation, right angle between IDCs and RJ45 jacks
ID stripes for identifying port allocations
Mounts in standard 19” rack
IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 10G & ISO/IEC 11801 standard
DLINK PATCH PANEL CAT6A STP 24 PORT
. Panel: SECC, 1.2mm thickness with optional color painted
2. Identification:
- ID plate: PVC, Transparent color with paper
- ID Bracket: ABS+PC, UL 94V-0
3. RJ45 Jack:
- Housing: PBT+ Glass Fiber, UL94V-0
- Contact Bracket: PBT+ Glass Fiber, UL94V-0
4. RJ45 Jack Contact:
- Material: Phosphor Bronze with Nickel plated
- Finish: 50 micro-inches Gold plated on Plug contact area
5. RJ45 Jack Shield: Bronze with Nickel plated
6. Dust cover: PC, UL94V-2
7. IDC:
- Housing: PC+ Glass Fiber, UL 94V-2
- Terminal: Phosphor Bronze with Tin Plated
8. Ground wire: 18 AWG wire, with Green/Yellow striped color
9. PCB: FR4, UL 94V-0
buy today at city communication store at best affordable prices
