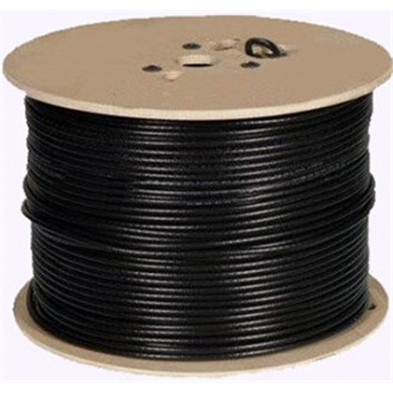

DS-1LC1SCA2C-200B COAXIAL CABLE ( 307400102 )
| 200m RG59 coaxial cable with power cable l Conductor material of Coaxial cable is OFC(Oxygen Free Copper) l Braiding material of Coaxial cable is CCA(Copper-clad Aluminum) l Conductor material of power cable is OFC(Oxygen Free Copper) l VW-1 flame retardant rating l Excellent anti-interference performance l Excellent anti-aging performance |
| Coaxial Cable | ||
|---|---|---|
| (Driver) Material: | OFC (Oxygen Free Copper) | |
| (Driver) Wire Gauge: | 20AWG | |
| (Conductor) Diameter: | 0.81 ± 0.01mm | |
| (Insulation) Material: | FPE | |
| (Insulation) Diameter: | 3.66 ± 0.05mm | |
| (Tape) Material: | Shielding Aluminum Foil, 15mmwidth | |
| (Tape) Thickness: | 0.04mm | |
| (Braid) Material: | CCA (Copper-clad Aluminum) | |
| (Braid) Braiding Standard: | 8 * 16 * 0.12mm | |
| (Braid) Braiding Density: | 95 ± 1% | |
| (Jacket) Material: | PVC | |
| (Jacket) Average Thickness: | ≥0.65mm | |
| (Jacket) Diameter: | 6.10 ± 0.2mm | |
| Impedance: | 75ohms | |
| Power Cable | ||
|---|---|---|
| (Driver) Material: | OFC (Oxygen Free Copper) | |
| (Driver) Quantity: | two | |
| (Conductor) Diameter: | 7 * 0.385 ± 0.01mm | |
| (Insulation) Material: | PE (Flame Retardant) | |
| (Insulation) Diameter: | 1.8 ± 0.1mm | |
| (Jacket) Material: | PVC | |
| (Jacket) Average Thickness: | ≥0.3mm | |
| general | ||
|---|---|---|
| Length: | 200m | |
| Color: | Black | |
| Operating Temperature: | -40-80ºC | |
| Storage Temperature: | -20-70ºC | |
