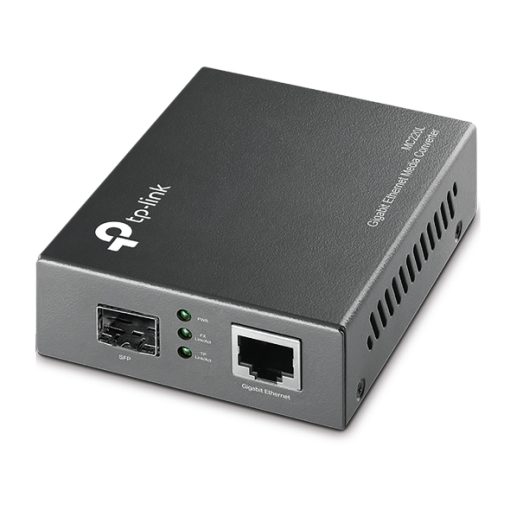

MC220L Gigabit Ethernet Media Converter

KSh2,600.00

MC220L Gigabit Ethernet Media Converter

10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3ab and IEEE 802.3z
SFP port supports hot-swappable

Category: Networking Equipment Tag: MC220L Gigabit Ethernet Media Converter

Description
Reviews (0)

MC220L Gigabit Ethernet Media Converter

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
Ports	1 x Gigabit SFP port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length	Depends on the used SFP module
Network Media 1000BASE-X	Multi-mode/Single-mode SFP module
Network Media 1000BASE-T	UTP category 5, 5e, 6 cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators	PWR, Link/Act
Dimensions (WDH)	3.7 x 2.9 x 1.1 in. (94 x 73 x 27 mm)
Power Supply	External Power Adapter (9VDC/ 0.6A)
Max Power Consumption	1.7 W
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
