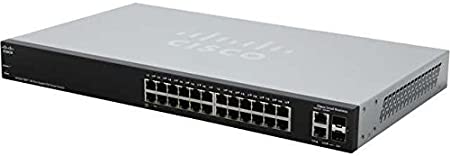

SG200-26P Cisco 24 port PoE Gigabit Smart Switch
SG200-26P Cisco 26 port PoE Gigabit Ethernet Smart Switch delivers baseline security and quality of service features needed to share network resources and connect network devices.
Cisco 26 port PoE Gigabit Ethernet Smart Switch has native support for IPv6 as well as the previous IPv4 standard hence ensuring one’s network is ready for the next advertisement in technology
26 port Cisco PoE Gigabit Ethernet Smart Switch optimizes power hence reducing power cost and maximizes performance.
Cisco 26 port PoE Gigabit Ethernet Smart Switch Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) automatically detects the devices connected to your network,
Cisco 26 port PoE Gigabit switch automatically configures the switch with the appropriate settings and instructs end devices on the appropriate voice VLAN or QoS parameters to use.
Cisco SG200-26P 26 port PoE Using SNMP (Simple Network Management Protocol), you can set up and manage all switches and other Cisco devices in your network remotely.
Cisco SG200-26P switch has the ability to maintain two images in permanent storage instead of only a single image, you can perform software upgrades without taking the network offline or worrying about an outage because of a bad image file.
SG220-26 switch provides native support for IPv6, making it easier to migrate to the next generation of networking applications and operating systems without an equipment upgrade.
26 port Cisco PoE switch Support network security applications such as IEEE 802.1X and port security can tightly limit access to specific segments of your network. Guest virtual LANs (VLANs) let you provide internet connectivity to nonemployee users while isolating critical business services from guest traffic. Extensive ACLs can restrict sensitive portions of the network from unauthorized users and guard against network attacks.
Cisco SG200-26P switch embedded QoS intelligence prioritizes delay-sensitive services such as voice and video and simplifies unified communications deployments, helping to ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone
Cisco SG200-26P 26 port PoE Gigabit Ethernet Smart Switch specifications
JUMBO FRAME SUPPORT: | Yes |
---|---|
MINIMUM STORAGE TEMPERATURE: | -4 F |
DEPTH: | 10.1 |
MTBF: | 218,842 hour(s) |
HEIGHT: | 1.73 inches |
MAXIMUM OPERATING TEMPERATURE: | 104 F |
MAC ADDRESS TABLE SIZE: | 8000 entries |
LOCALIZATION: | Chinese (simplified), English, German, French, Italian, Spanish |
WIDTH: | 17.3 inches |
ENCLOSURE TYPE: | Rack Mountable |
MAXIUMUM STORAGE TEMPERATURE: | 158 F |
MOUNTING KIT: | Included |
PORTS: | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
DEVICE TYPE: | Switch – 26 ports |
REMOTE MANAGEMENT PROTOCOL: | SNMP, RMON, HTTP, TFTP |
HUMIDITY OPERATING RANGE: | 10-90% (non-condensing) |
WEIGHT: | 8.4 lbs |
MINIMUM OPERATING TEMPERATURE: | 32 F |
INTERFACES: | 26 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | 26 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE | 2 x SFP (mini-GBIC) |
HUMIDITY STORAGE RANGE: | 10-90% (non-condensing) |
FLASH MEMORY: | 16 MB |
VOLTAGE REQUIRED: | AC 120/230 V ( 50/60 Hz ) |
PERFORMANCE: | Switching capacity: 38.69 Mpps; Forwarding performance (64-byte packet size): 52 Gbps |
POWER DEVICE: | Power supply – internal |
POWER OVER ETHERNET (POE): | PoE |
STATUS INDICATORS: | Link activity, port transmission speed, system, PoE |
RAM: | 128 MB |
AUTHENTICATION METHOD: | RADIUS |
ENCRYPTION ALGORITHM: | MD5 |
