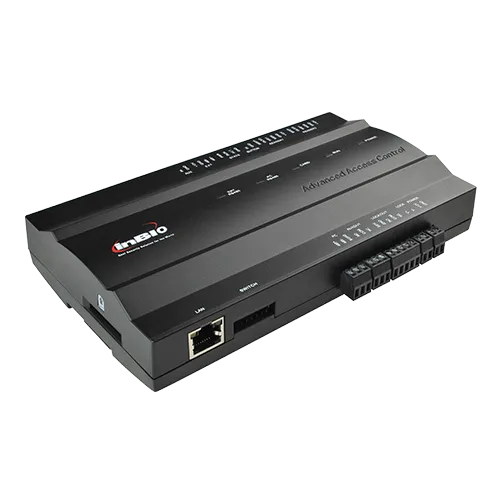

ZK Teco inBio460 Pro Package B Four Door Control Panel

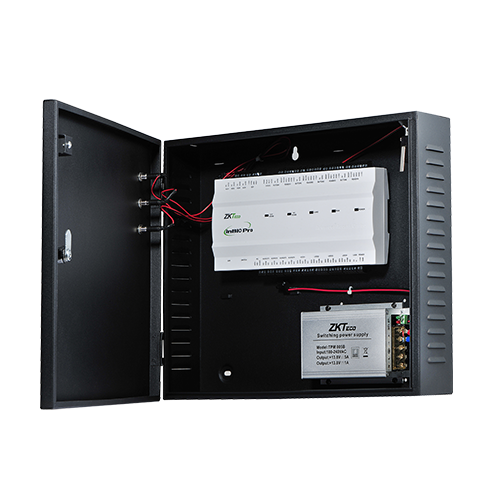

The inBio 460 Pro Package B is a high-end, IP-based, four-door biometric access control panel housed in a secure metal enclosure. It includes an internal power supply, supports four Wiegand readers, and interfaces optionally via RS-485 or Wi‑Fi. It’s ideal for medium to large systems with centralized management and real-time control.

ZK Teco inBio460 Pro Package B Four Door Control Panel Specifications

• Doors Supported: 4

• Readers Supported: 12 total (4 Wiegand readers, plus up to 8 RS‑485 biometric readers like FR1300 or FR1500)

• Inputs: 12 (4 exit buttons, 4 door sensors, 4 auxiliary inputs)

• Outputs/Relays: 8 Form‑C relays (4 for door locks, 4 auxiliary)

• User Capacity:

  • Card users: up to 60,000

  • Fingerprint templates: up to 20,000

• Log Storage: Up to 100,000 events

• Communication: TCP/IP; RS‑485; optional Wi‑Fi

• Controller Specs: 32-bit 1.2 GHz CPU, 128 MB RAM, 256 MB flash

• Power Input: 9.6 – 14.4 V DC; supports backup battery via enclosure

• Dimensions/Weight: Approx. 350 × 90 × 300 mm; around 3.7 kg
