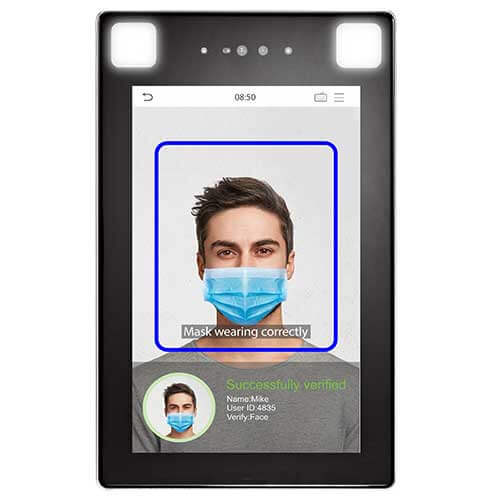

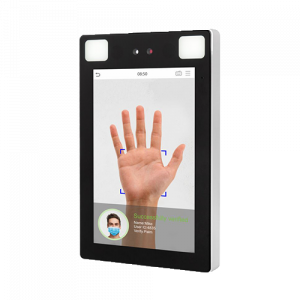

ZK Teco ProFace X(SL)-ID Time Attendance – Access Control 3D Structured Light Facial Recognition Technology

The ProFace X (SL) leverages 3D structured-light technology, projecting ~30,000 infrared laser spots to capture accurate depth and surface features. This enables true anti-spoofing, effectively guarding against 2D photo, video, and mask attacks. It identifies masked individuals, supports hands-free verification (0.3 s), and is rugged enough for all-weather use (IP68 & IK04)

ZK Teco ProFace X(SL)-ID Time Attendance – Access Control 3D Structured Light Facial Recognition Technology Specifications

• Facial Templates: 30,000 (1:N), upgradeable to 50,000

• User/Card Capacity: 50,000 users

• Transaction Logs: 1,000,000 standard (2,000,000 optional)

• Photo Storage: 30,000 user photos; 10,000 event snapshots

• Recognition Time: ≤ 0.3 seconds per face

• Hardware:

  • CPU: 900 MHz dual-core AI/vision processor

  • Memory: 512 MB RAM + 8 GB flash

  • Display: 8″ IPS touch screen @ 400 cd/m²

  • Camera: 2 MP WDR low-light with adjustable LED

  • Microwave proximity sensor

  • EM 125 kHz & optional MIFARE reader

  • Connectivity:

  • TCP/IP, RS485, RS232, Wiegand I/O

  • Optional Wi‑Fi

  • Possible HTTPS encryptionAccess I/O: Relay, alarm output, aux input, exit button, door sensor r

• Durability:

  • IP68 dust/water-proof, IK04 impact resistance

  • Operating temp: –30 °C to 60 °C; humidity ≤ 93%

  • Algorithm: ZKLiveFace 5.8 3D structured-light recognition

• Power: DC 12 V (< 2 A)
