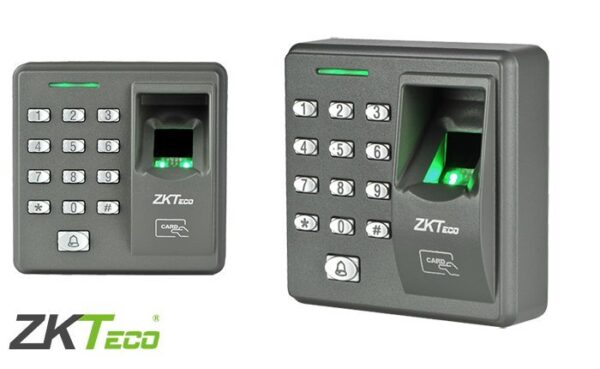

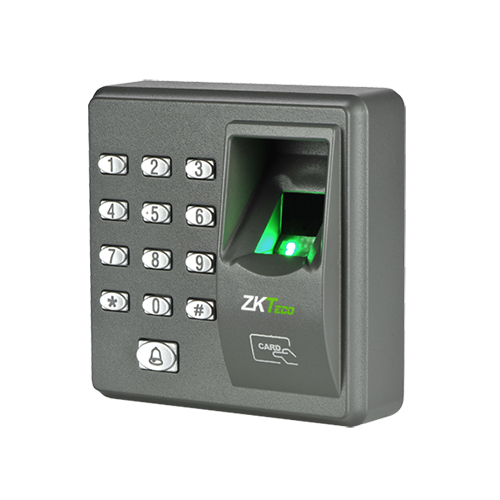

ZK Teco X7 Standalone Fingerprint Access Control Terminal

The ZKTeco X7 is a compact, wall-mount biometric access control terminal that supports fingerprint, RFID cards (125 kHz EM or optional 13.56 MHz MIFARE), and PIN entry via a 4×4 keypad. Equipped with ZK’s fast fingerprint algorithm (v10.0), it operates in standalone mode and provides interfaces for electric lock, door sensor, exit button, alarm, and doorbell—making it a reliable choice for homes, offices, and small businesses.

ZK Teco X7 Standalone Fingerprint Access Control Terminal Specifications

• Fingerprint Capacity: Stores up to 500 fingerprints.

• Card Capacity: Supports up to 500 RFID cards.

• PIN Support: Up to 8 PIN groups for user access.

• Matching Speed: Under 1 second for both fingerprint and card.

• Sensor Type: Uses ZKTeco’s optical fingerprint sensor.

• Algorithm: ZK Finger v10.0 for fast and accurate recognition.

• Interfaces: Includes relays for electric lock, door sensor, alarm, exit button, and doorbell.

• Power Supply: Operates at 12 V DC, typically drawing 3 A.

• Operating Environment: Designed to run between 0 °C and 45 °C in 20–80% relative humidity.

• Device Size: Measures approximately 88 × 88 × 34 mm.
