ZK Teco ZK-D2180 Metal Detection-18Zone

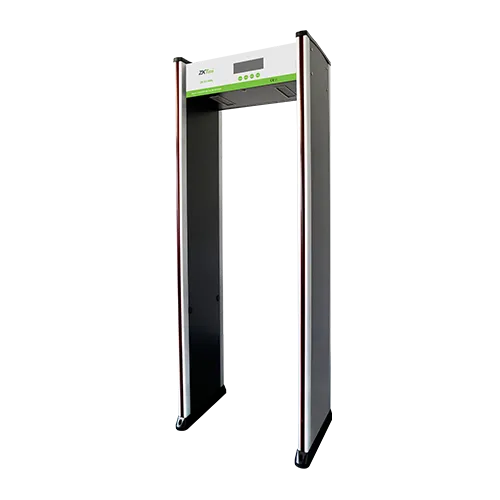

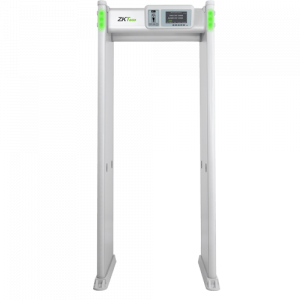

The ZK‑D2180 is a premium walk-through metal detector featuring 18 detection zones and 256 adjustable sensitivity levels. It includes a 3.5″ LCD display, real-time people and alarm counting, and synchronized sound and LED alerts. Designed for full security integration, it supports TCP/IP communication, remote control, turnstile linkage, and smartphone app monitoring. It’s suitable for high-profile venues like companies, schools, stadiums, and airports.

ZK Teco ZK-D2180 Metal Detection-18Zone Specifications

• Detection Zones: 18 independent zones for precise localization of metallic objects.

• Sensitivity Levels: 256 adjustable sensitivity levels per zone.

• Display & Alerts: 3.5-inch LCD screen with synchronized audio and visual alarms.

• Counting Features: Counts total people passing through and number of alarms triggered.

• Connectivity: Supports TCP/IP communication, remote control, turnstile linkage, and mobile app integration.

• Power: AC input 100–240 V; DC 12 V at 1.5 A; power consumption up to 18 W.

• Alarm Volume: At least 85 dB.

• Physical Dimensions: Approximately 2226 × 844 × 579 mm.

• Weight: Around 50 kg.

• Operating Environment: Works between –20°C and 55°C, humidity below 95% (non-condensing).
