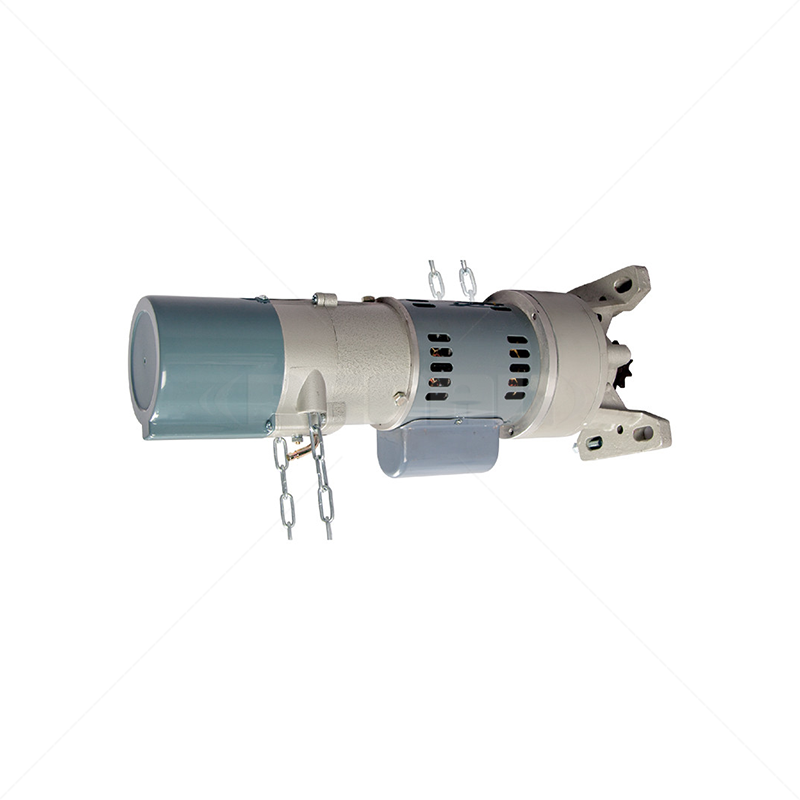

500kgs Roller Shutter Motor Centurion RS05

The Centurion RS05, also known as RSO5 or RSO5DC (with battery backup), is a heavy-duty roller-shutter motor engineered for industrial and commercial applications. Designed to automate roller shutters weighing up to 500 kg, it’s ideal for factory entrances, loading bays, secure storage facilities, and other high-traffic points. It balances rugged mechanical strength with intelligent control and reliable backup power.

500kgs Roller Shutter Motor Centurion RS05 Specifications

• Operates on 220–240V AC, single-phase power

• Available in AC-powered and DC battery backup (RSO5DC) variants

• DC model (RSO5DC) operates on 24V DC with built-in battery charger

• Lifting capacity of up to 500kg shutter weight

• Motor speed:

  • AC version: 1,780 RPM

  • DC version: 1,440 RPM

• Shaft speed:

  • AC: approx. 35 RPM

  • DC: approx. 50 RPM

• Travel speed:

  • AC: approx. 100 mm/s

  • DC: approx. 130–140 mm/s

• Power consumption:

  • AC model: approx. 360W

  • DC model: approx. 220W

• Duty cycle:

  • AC version: up to 20%

  • DC version: up to 35%

• Daily operation capacity:

  • AC model: up to 200 cycles/day

  • DC model: up to 350 cycles/day

• Gearbox: Heavy-duty aluminium housing with double-layer oblique gear design (DC model)

• Equipped with mechanical limit switches for open and close stop positions

• Includes manual override with 5m hand chain and release pin

• Built-in thermal protection to prevent overheating

  • AC model: activates between 95–125°C

  • DC model: activates at 70°C

• Motor length: approx. 410mm

• Motor weight: approx. 9.6 kg (net)

• Chain drive: Uses a 9-tooth sprocket with a 5/8-inch chain
