Sectional Garage Door Motor SD04 Smart

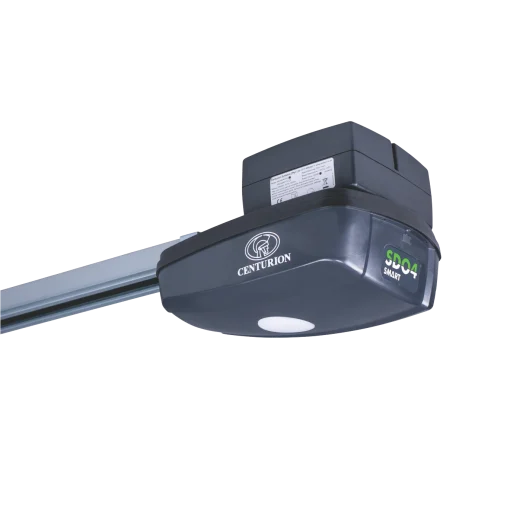

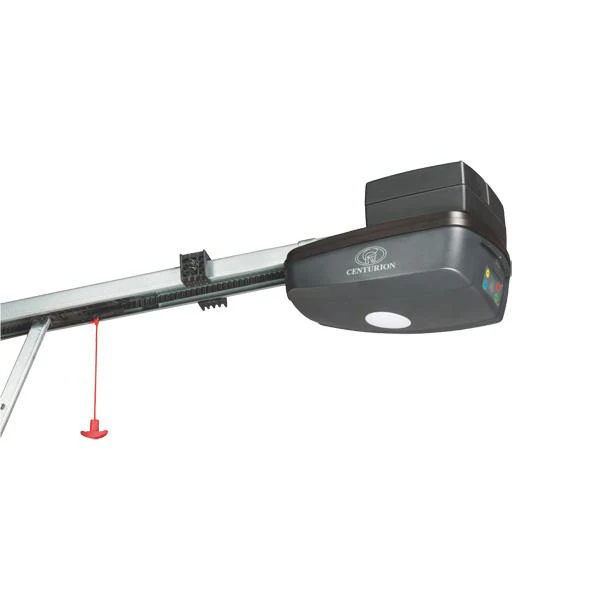

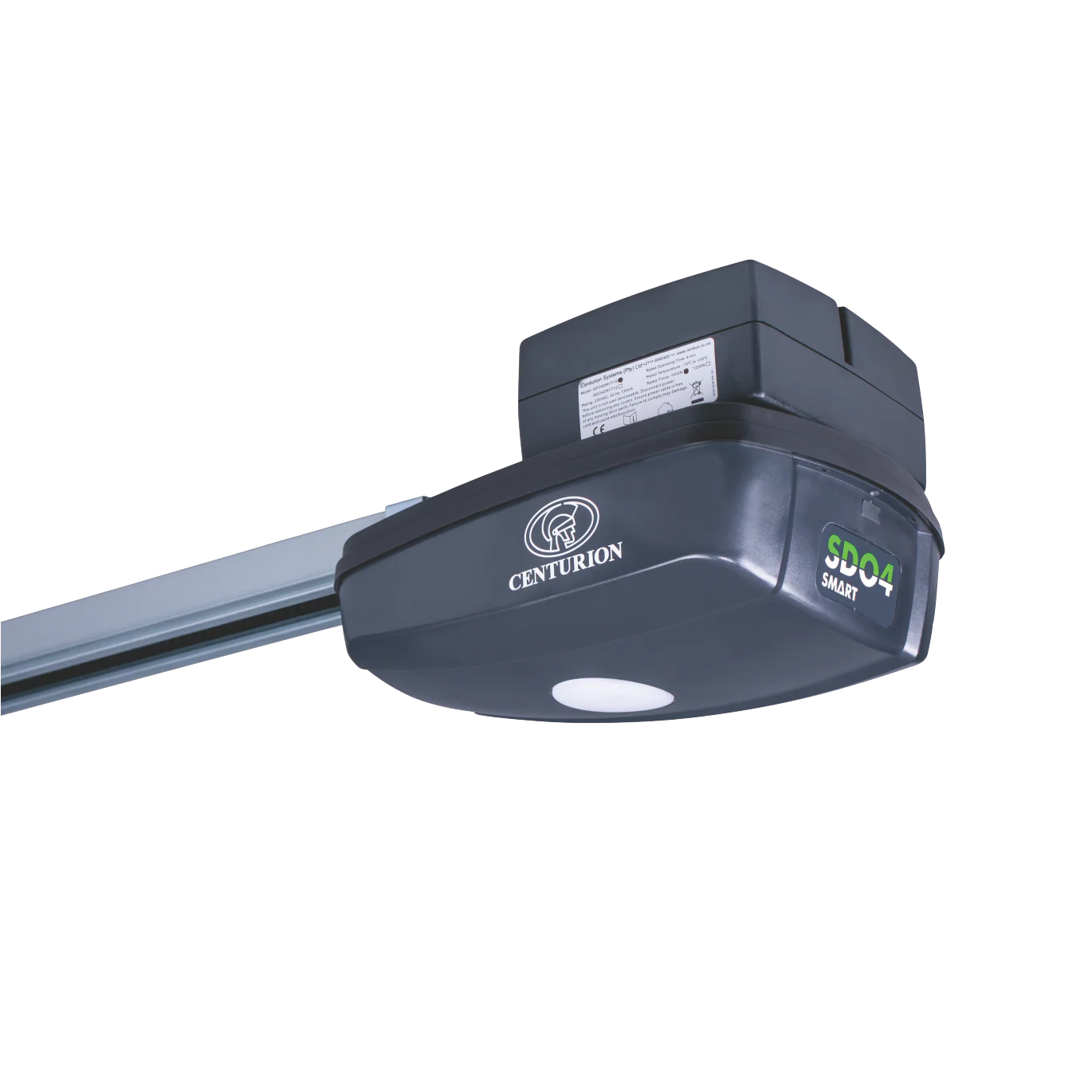

The Centurion SDO4 SMART is a modern, cable-free garage door operator built for both sectional and tip-up doors. It combines whisper‑quiet belt-drive mechanics with smart connectivity, battery backup, and robust safety/security systems. Ideal for residential use, it delivers a sleek installation and reliable performance—even during power outages

Sectional Garage Door Motor SD04 Smart specifications

• Runs on 230 V AC input (±10%, 50/60 Hz)

• Uses a 24 V DC motor powered by dual 12 V batteries (3.4 Ah each)

• Comes in two models:

  • T10: rated at 80 W DC, for doors up to 12 m²

  • T12: rated at 100 W DC, for doors up to 15 m²

• Push/pull force:

  • T10: 40 kgf (about 1,000 N)

  • T12: 50 kgf (about 1,200 N)

• Operates during power outages for up to ~90 cycles, depending on door size and battery condition

• Offers a travel speed of 9 m/min on the door

• Automatically learns physical end-stop positions for precise operation

• Supports obstruction detection and automatic reverse via built-in settings

• Includes a 2 W LED courtesy light

• Features programmable autop-closure function

• Optional integration with infrared safety beams

• Onboard single-channel 433.92 MHz code‑hopping receiver, stores up to 20 transmitters

• Rated IPX0, making it for indoor use only

• Provides two configurable I/O channels (input or output)

• Includes tamper-detection alarm, vibration sensor, and option to link to siren

• Compatible with the MyCentsys Pro app for remote configuration, diagnostics, and control

• 3-year warranty for peace of mind and reliability
