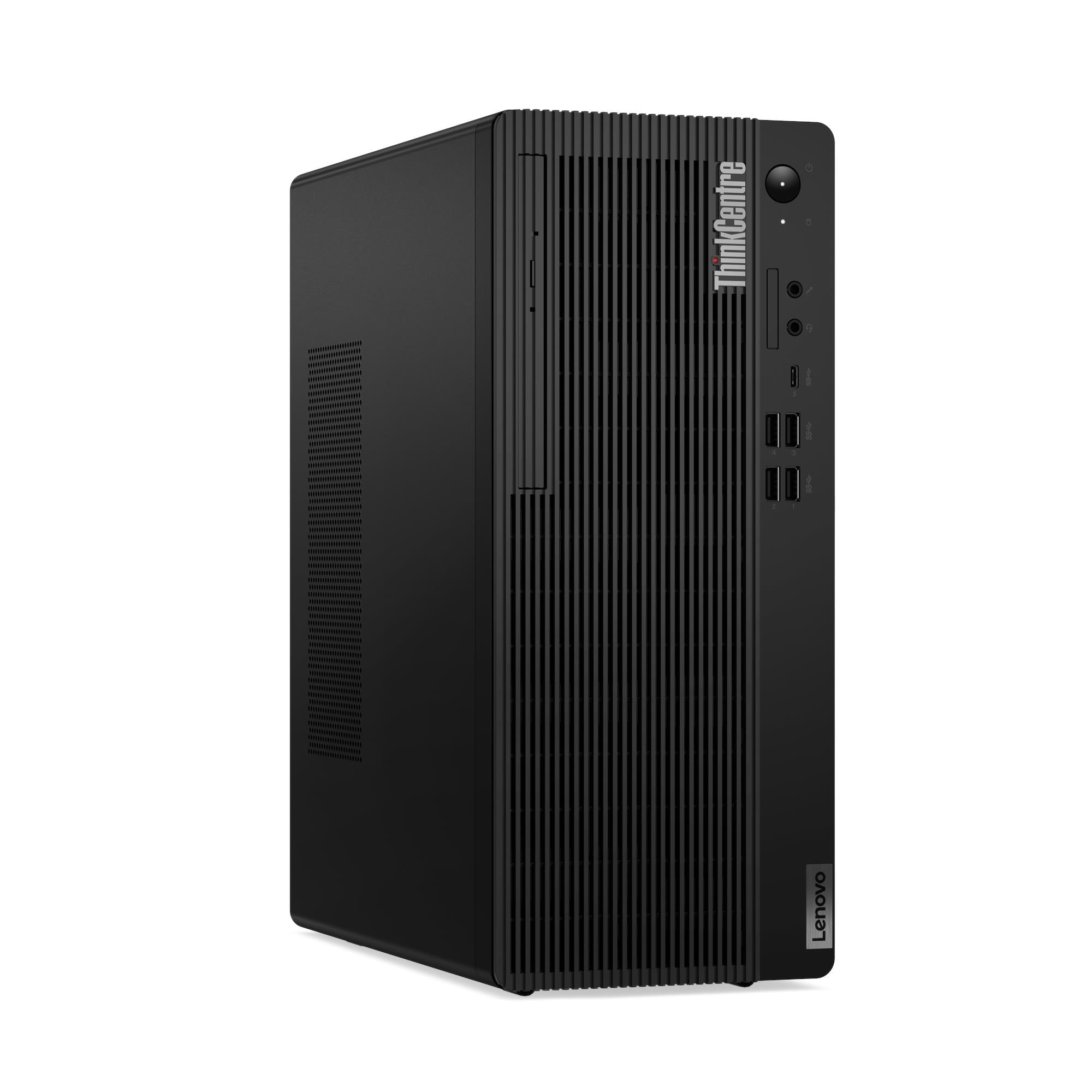

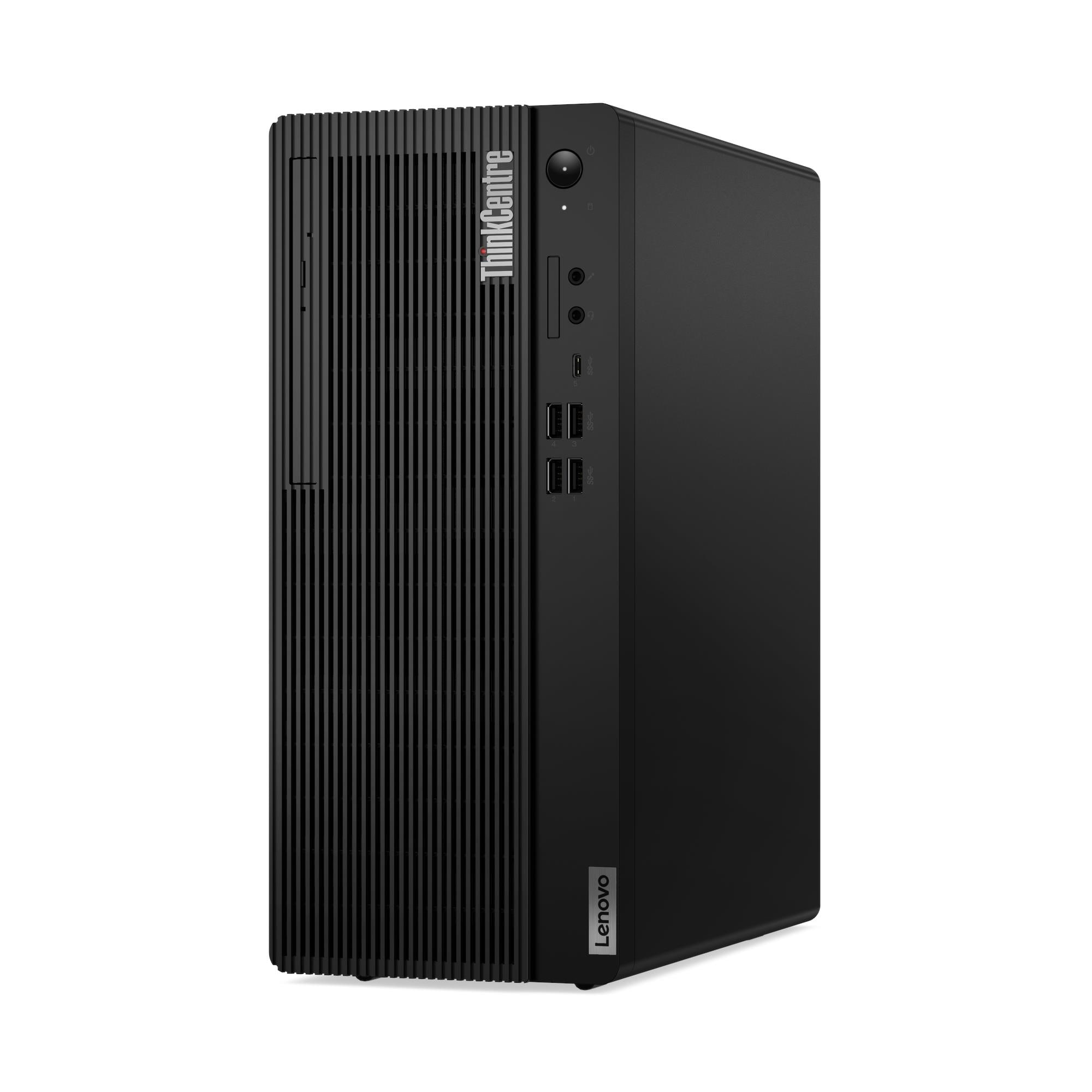

Lenovo ThinkCentre M70t Gen 5 Tower, Intel Core i7 14700, 8GB DDR5 RAM, 512GB SSD, No OS – Model No: 12U6003PUM

Lenovo ThinkCentre M70t Gen 5 Tower Desktop — Intel Core i7-14700, 8GB DDR5, 512GB SSD, No OS — Model 12U6003PUM

The Lenovo ThinkCentre M70t Gen 5 is a full-height enterprise tower desktop that combines the processing power of a 20-core Intel Core i7-14700 with the security, manageability, and expandability that large corporate deployments demand. Specifically, it runs on the Intel Q670 chipset — the enterprise-grade platform that enables Intel vPro® Enterprise — and carries a discrete TPM 2.0 chip certified to both TCG and FIPS 140-2 standards, along with MIL-STD-810H military durability testing. As a result, this tower suits IT administrators, regulated-sector organisations, and power users who need a fully manageable, highly expandable, and security-hardened workstation built to last across a long deployment cycle.

Technical Specifications

Processor

Memory

Storage

Graphics

Front Ports

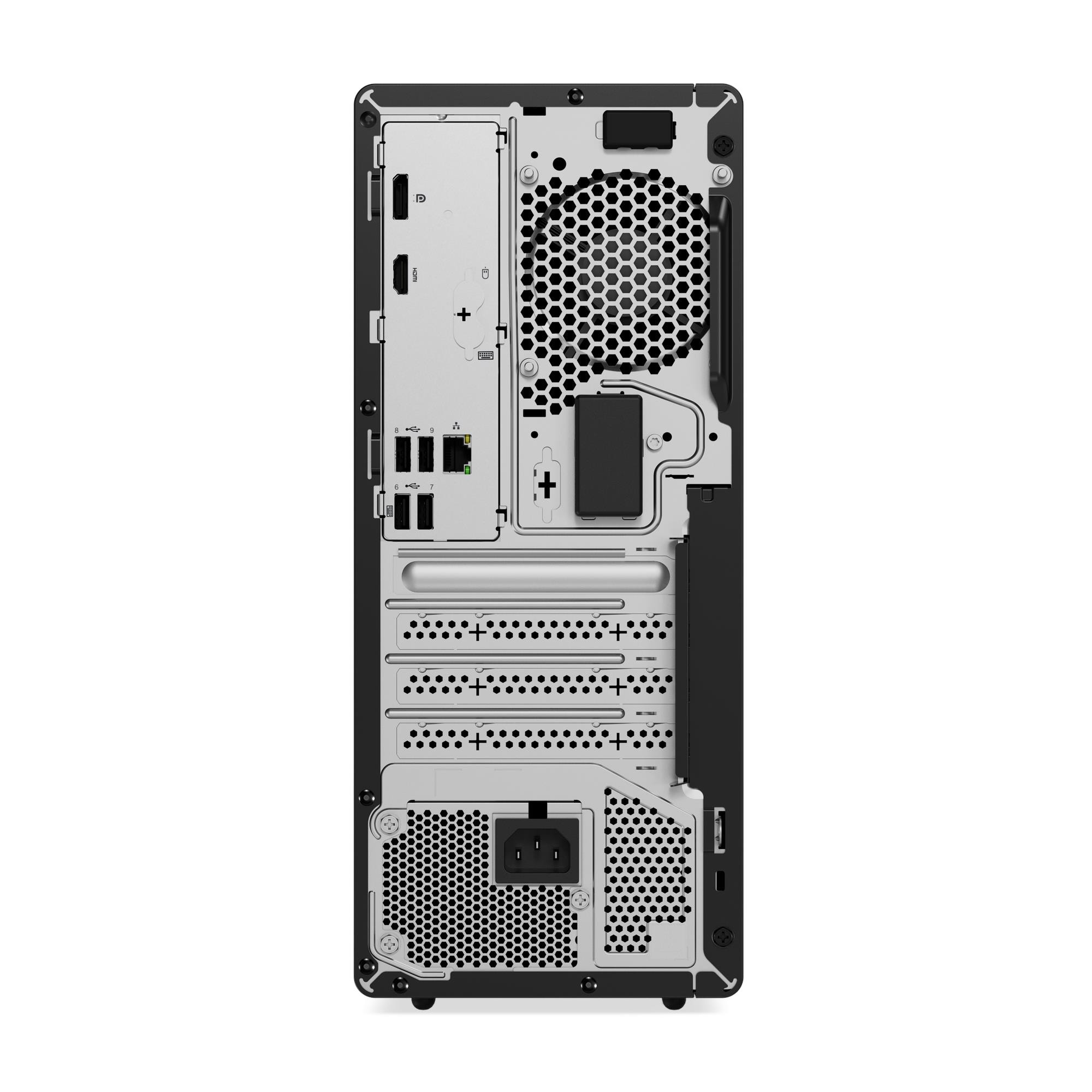

Rear Ports

Wireless Connectivity

Security

Design & Physical

Power Supply

Audio

Operating System

Durability

Certifications

Warranty

1-year courier/carry-in, 1-year limited onsite, or 3-year limited onsite service (varies by model configuration)

Use Cases

Enterprise Fleet Deployment with Remote Management

The ThinkCentre M70t Gen 5 targets large-scale corporate deployments where IT administrators manage devices remotely rather than at the desk. In particular, Intel vPro® Enterprise delivers out-of-band management via the Intel Q670 chipset — enabling KVM remote control, hardware-level threat monitoring, and OS-independent device recovery across the fleet. Additionally, Smart Power On, Wake-on-LAN, individual USB port disablement, and Smart USB Protection give IT teams the granular endpoint control they need to manage distributed estates efficiently.

Regulated and Security-Sensitive Environments

The M70t Gen 5 carries a discrete TPM 2.0 chip certified to both TCG and FIPS 140-2 standards, alongside Certificate-Based BIOS Authentication, Self-Healing BIOS, Absolute Persistence Module, Secure Wipe, and chassis intrusion detection. Consequently, organisations in finance, healthcare, government, and defence can deploy this tower within environments that mandate strict endpoint security compliance. Furthermore, the Kensington Security Slot, Padlock Loop, and optional E-lock provide layered physical security options for shared or high-value workstations.

GPU-Accelerated Professional Workstations

The full-height PCIe x16 expansion slot accepts premium discrete graphics options — including the NVIDIA GeForce RTX 5050 with 8GB GDDR6 and 421 AI TOPS, and the AMD Radeon RX 6600 LE with 8GB GDDR6. As a result, users who run AI inferencing, 3D rendering, video production, multi-stream surveillance monitoring, or multi-display trading setups at 8K resolutions can configure the M70t Gen 5 to meet those demands directly. Moreover, the 380W power supply option provides the headroom that premium discrete graphics cards require.

Expandable Long-Term Workstations

The 13.6-litre tower chassis delivers toolless access to all major internal components — memory, drives, optical, and expansion cards — so IT service teams reconfigure deployed units rapidly as requirements evolve. In addition, the three-drive configuration supports up to 2TB M.2 NVMe SSD, a 3.5″ SATA HDD, and an optional 2.5″ HDD simultaneously. Furthermore, two DDR5 UDIMM slots accept up to 64GB total, and the optional 2.5GbE RJ-45 PCIe adapter upgrades network throughput beyond standard Gigabit Ethernet without replacing the machine.

OS-Agnostic Image-Controlled Deployments

The 12U6003PUM ships bare-metal with no preloaded OS, so IT teams apply their validated corporate image directly on first boot. Specifically, the machine supports Windows 11 Pro, Windows 11 IoT Enterprise LTSC 2024, Windows 10 Pro (via downgrade rights), and Ubuntu Linux — covering the full range of enterprise and open-source deployment environments. Consequently, this configuration suits organisations that maintain golden images and need a clean, unencumbered target machine rather than a retail-configured unit.

Considerations

Memory Starts at 8GB — Dual-Channel Inactive

This configuration ships 8GB of DDR5 in a single UDIMM, which leaves the second slot empty and dual-channel memory operation inactive. Therefore, users running memory-intensive applications — virtualisation, large datasets, or concurrent multi-application professional workloads — should add a matched second DIMM at point of order or shortly after deployment. Specifically, dual-channel activation increases memory bandwidth noticeably, and the two slots accept up to 64GB DDR5 total.

PCIe Expansion Slots Run at PCIe 3.0

Despite the PCIe 4.0 NVMe SSD, both full-height expansion slots — the x16 and the x1 — operate at PCIe 3.0 bandwidth. As a result, discrete graphics cards and PCIe peripherals that benefit from PCIe 4.0 throughput operate at PCIe 3.0 speeds in this chassis. For most current professional workloads and the supported discrete GPU options, PCIe 3.0 x16 does not represent a practical bottleneck. However, buyers specifying high-bandwidth PCIe 4.0 expansion cards should factor this into their configuration decision.

Onboard Video Limited to Two Displays

The integrated Intel UHD Graphics 770 drives a maximum of two independent displays via the rear HDMI 2.1 and DisplayPort 1.4a simultaneously — unlike the neo 50t Gen 5, which natively supports three displays via HDMI, DP, and VGA. Therefore, users who need three or more monitors from the M70t Gen 5 must add a discrete graphics card. However, the supported card options — including the RTX 5050 with three DisplayPort 2.1 outputs and one HDMI 2.1 — more than compensate for this onboard limitation.

No Rear VGA Port

The M70t Gen 5 does not carry a rear VGA output. Instead, rear video outputs consist of HDMI 2.1 and DisplayPort 1.4a only. Consequently, users connecting legacy VGA monitors must use the bundled HDMI-to-VGA or DP-to-VGA dongle. The neo 50t Gen 5 includes a native VGA port, making it the more straightforward choice for environments with legacy display infrastructure.

vPro Requires Specific Wi-Fi Card Configuration

Intel vPro® Enterprise activation on the M70t Gen 5 requires the Intel Wi-Fi 6E AX211 card with vPro technology support — a specific SKU within the Wi-Fi 6E AX211 family. Consequently, buyers who need vPro for remote management must confirm this card appears in the 12U6003PUM configuration at point of order, rather than assuming any AX211 variant enables the full vPro feature set.

No Operating System Included

The 12U6003PUM ships bare-metal with no preloaded OS. Consequently, this configuration targets IT-managed deployments with existing volume licences rather than end users who expect a ready-to-use machine. Buyers must supply and deploy their own OS licence and installation media before use.

Frequently Asked Questions

How Does the M70t Gen 5 Differ from the neo 50t Gen 5 Tower?

Both towers share the Intel Core i7-14700 processor, DDR5 memory, and PCIe 4.0 NVMe storage. However, the M70t Gen 5 differentiates itself through the Intel Q670 chipset (enabling vPro), a discrete TPM 2.0 certified to FIPS 140-2, MIL-STD-810H durability testing, GREENGUARD® and ErP Lot 3 certifications, toolless internal access, an optional E-lock, a 3-year onsite warranty option, Wi-Fi 6E support, an optional 2.5GbE network adapter, and support for premium discrete graphics including the NVIDIA RTX 5050. In contrast, the neo 50t Gen 5 uses the B760 chipset without vPro, carries a TCG-only TPM, natively supports three displays via HDMI + DP + VGA, and includes a rear VGA port that the M70t Gen 5 omits.

Does the M70t Gen 5 Support Intel vPro?

Yes, on configurations that include the Intel Wi-Fi 6E AX211 card with vPro technology support. Specifically, vPro delivers out-of-band remote management, hardware-level AMT, and KVM-over-network capabilities independently of the operating system. Buyers should confirm vPro activation in the 12U6003PUM configuration at point of order, as not all Wi-Fi 6E AX211 variants activate the full vPro feature set.

Can I Install a Full-Size Graphics Card?

Yes. The PCIe 3.0 x16 full-height slot accepts cards up to 222.7mm in length and 111.2mm in height, covering the NVIDIA RTX 5050, RTX 3050, AMD RX 6600 LE, and Intel Arc A310 LP — all of which Lenovo lists as supported options. However, both PCIe slots run at PCIe 3.0 bandwidth rather than PCIe 4.0.

Can I Upgrade the RAM After Purchase?

Yes. The two DDR5 UDIMM slots accept up to 64GB DDR5 total. Furthermore, adding a matched second DIMM activates dual-channel memory operation, which increases memory bandwidth and improves multi-tasking performance — making it one of the most impactful post-purchase upgrades for this configuration.

How Many Monitors Can This Tower Support?

The integrated Intel UHD Graphics 770 drives two displays via the rear HDMI 2.1 and DisplayPort 1.4a ports. However, adding a discrete graphics card significantly expands output. Specifically, the NVIDIA RTX 5050 supports four simultaneous displays via three DisplayPort 2.1 and one HDMI 2.1 output — and delivers 7680×4320 resolution at up to 165Hz with DSC.

What Operating Systems Does This Machine Support?

The 12U6003PUM ships with no preloaded OS and supports Windows 11 Pro, Windows 11 Home, Windows 11 IoT Enterprise LTSC 2024, Windows 10 Pro (via downgrade rights), and Ubuntu Linux. Consequently, IT teams apply their validated corporate image immediately on arrival.

Does the M70t Gen 5 Support Wi-Fi?

Wi-Fi is optional on this platform. Available configurations include Realtek Wi-Fi 6 with Bluetooth 5.3, Intel Wi-Fi 6 AX201 with Bluetooth 5.2, Intel Wi-Fi 6E AX211 with Bluetooth 5.3, and the vPro-enabled AX211 variant. Wired Gigabit Ethernet via Intel I219-LM is the confirmed standard onboard connection. Additionally, the optional 2.5GbE PCIe x1 adapter upgrades wired network throughput for bandwidth-intensive environments.
