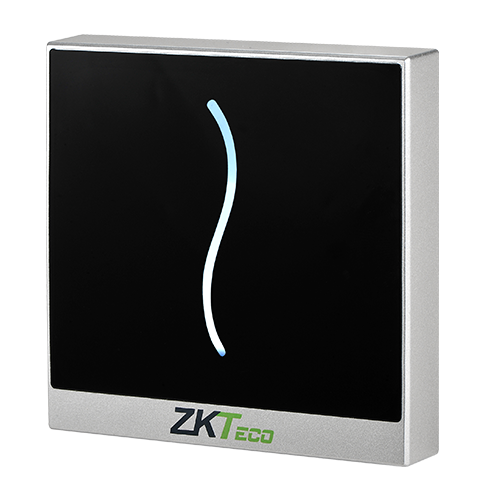

ZK Teco ProID20WE Wiegand card Reader

The ProID20WE is a sturdy, weather-resistant Wiegand-format card reader designed for both indoor and outdoor access-control applications. Its modern, compact casing (90 × 90 × 16 mm) blends durability with a sleek appearance, making it ideal for residential, commercial, or industrial settings.

ZK Teco ProID20WE Wiegand card Reader Specifications

• Card Format & Range

  • Reads 125 kHz EM or 13.56 MHz IC (MIFARE, DESFire, FeliCa, Legic)

  • Typical read range: around 5 cm

• Wiegand Output

  • Configurable output (26‑ or 34‑bit) for compatibility with various controllers

• Performance

  • Card read time: ≤ 300 ms

  • Power requirement: 7–13 V DC, drawing <80 mA

• User Feedback & Indicators

  • Pulsing white LED in standby, red/green LEDs for status

  • Built-in beeper, plus external LED/buzzer control

• Durability & Environment

  • Waterproof and dust-resistant (IP65)

  • Operating temperatures from −10 °C up to +65 °C

  • Humidity tolerance: 10–90% (non-condensing)

• Construction & Dimensions

  • ABS + PC robust casing

  • Measures 90 × 90 × 16 mm; weighs a few hundred grams
