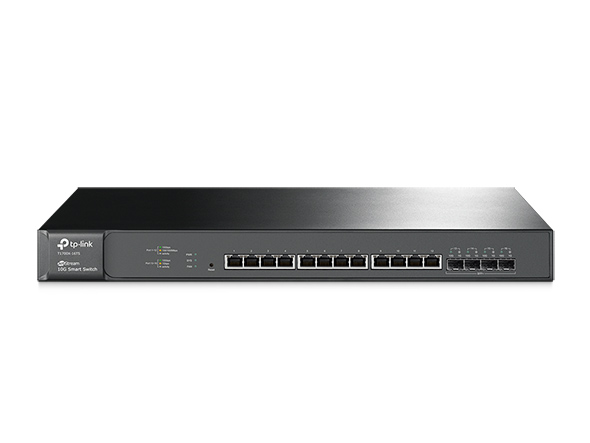

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+

Original price was: KSh125,000.00.Current price is: KSh124,000.00.

Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports, providing 320Gbps Switching Capacity
10GBase-T Technology provides a cost-effective method for migrating from current network to 10G Ethernet by utilizing existing CAT5e/CAT6 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m).
L2+ feature, Static Routing help route internal traffic for more efficient use of network resources
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
Comprehensive IPv6 support for management, QoS and ACL
WEB/CLI managed modes, SNMP, RMON enhance management
Dual Firmware Image improves reliability and up-time of your network

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3 an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	12 100M/1G/10GBase-T RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10G SFP+ Slots
Network Media	100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 10GBase-T: UTP CAT 5e, 6 (Maximum 55m) or above cable (Maximum 100m) 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR
Fan Quantity	2 smart fans
Physical Security Lock	Yes
Power Supply	100-240V, 50/60Hz
Dimensions ( W x D x H )	17.3 x 8.7 x 1.73 in. (440 x 220 x 44 mm)
Mounting	19″ 1U Rack Mountable (rack mount kit included)
Max Power Consumption	76.6W
Max Heat Dissipation	261.3 BTU/h

PERFORMANCE
Switching Capacity	Up to 320Gbps
Packet Forwarding Rate	Up to 238.1Mpps for a standalone switch
MAC Address Table	16K
Packet Buffer Memory	2MB
Jumbo Frame	9KB
Number of Static Routes	32 IPv4
Number of IP Interfaces	16

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 and L2+ Features	Static Routing IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control
VLAN	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN Private VLAN
Access Control List	L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security	Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend
IPv6	Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6
IPv6 Applications	DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
Management	Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image

OTHERS
Certification	CE, FCC, RoHS
Package Contents	T1700X-16TS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
