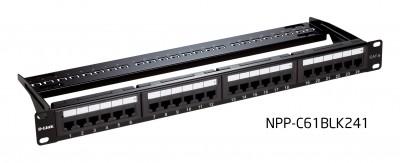

• dlink 24 Port Cat6 UTP Fully Loaded Punch Down Patch Panel – Keystone Type -1U- Black Color at city shop
• Description

• Available in 48 (2U)

• Six Port RJ45 modules applied
• ID stripes for identifying port allocations
• Improved Cable Management with optional cable management bar
• IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
• Mounts in standard 19” racks
• The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 standard

1.   Identification: ID plate, PVC, Transparent colour with paper

2.  Panel: SPCC, 1.5mm thickness with Black (RAL 9005) colour painted

3.     RJ45 Jack:

Housing: ABS, UL 94V-0

Contact Bracket: PC, UL 94V–2, Transparent color.

4.   RJ45 Jack Contact:

Material: Phosphor Bronze with Nickel Plated

Finish: 50 micro-inches Gold plated on plug contact area

5.     IDC:

Housing: PC+ Glass Fiber, UL 94V-2

• Terminal: phosphor Bronze with Tin Plated
• Ground wire: 18 AWG wire, with Green/Yellow striped color
• PCB: FR4, UL 94V-0
• Performance
• T568A & T568B wiring scheme on PCB
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operating temperature: -10C to 60C
• ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
• Life ( mating cycles):
• a. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-5)
• b. DC: suitable for 22-26 AWG stranded and solid wire,
• compatible with both 110& Krone punch down tool
• The Cat6 transmission performance is in compliance
