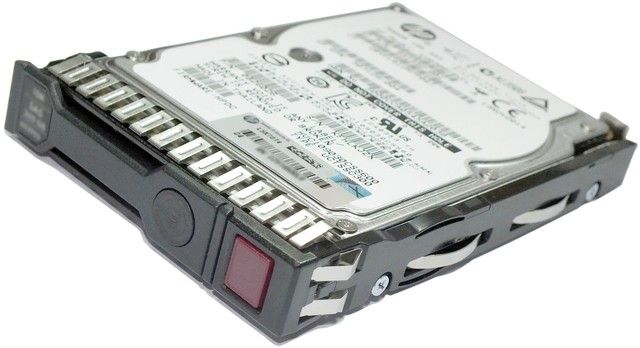

HPE 300GB 12G 785067-B21 SAS 10K rpm SFF (2.5-inch) SC HDD (G9 Series)

HPE 300GB 12G 785067-B21 SAS 10K rpm SFF (2.5-inch) SC HDD (G9 Series)

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray’s eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

This HPE 785067-B21 model internal hard drive has a 2.5 inch form factor and a 12 Gbps external data transfer rate. It has a spindle speed of up to 10000 RPM and a 300 GB capacity. This Small Form Factor drive uses a SAS-12Gbps interface and has 1 Year Warranty.

Specification

Brand: HPE
MPN: 785067-B21

Option Part Number: 785067-B21
Spare Part Number: 785410-001

General

Device Type: Hard Drive – Hot-Swap
Capacity: 300 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Spindle Speed: 10000 rpm

Expansion & Connectivity

Interfaces: 1 x SAS 12-Gbps
Compatible Bays: 1 x hot-swap – 2.5 inch

Compatibility Information

Designed for

HPE Proliant BL Series: BL420c (G8 G9) BL460c (G8 G9) BL465c (G8 G9) BL660c (G8 G9)

HPE Proliant DL Series: DL20 (G9)

HPE Proliant DL Series: DL120 (G8 G9) DL160 (G8 G9) DL180 (G8 G9) DL320e (G8 G9) DL360 (G8 G9) DL360e (G8 G9) DL388 (G9)

HPE Proliant DL Series: DL360p (G8 G9) DL380 (G8 G9) DL380e (G8 G9) DL380p (G8 G9) DL385p (G8 G9) DL560 (G8 G9) DL580 (G8 G9)

HPE Proliant ML Series: ML110 (G8 G9) ML150 (G8 G9) ML310e (G8 G9) ML350 (G8 G9) ML350e (G8 G9) ML350p (G8 G9)

HPE Proliant SL Series: SL230s (G8 G9) SL250s (G8 G9) SL270s (G8 G9)

HPE Proliant XL Series: XL170r (G9) XL190r (G9) XL220a (G9) XL230a (G9) XL250a (G9)

HPE Storage arrays: D3700 D2220sb StoreEasy 1830 1840

Contact us if you have any question about this product to verify the compatibility of this model with your current server or storage array.
